Getting Started: Editing Halo Campaign Evolved Tags

A practical guide to reading and changing Blam tags, with the mjolnir command line and the MJOLNIR Tag Editor.

For why any of this works — the container format, the self-describing layout section, and the evidence behind every rule — see tag_body_format.md. This page is about using it.

---

Before you start

Read this first. Two things are true and easy to miss:

1. Nothing here modifies your game. Every tool reads the installed containers read-only. An edit produces a new file; it does not touch the installation.
2. An edit can reach the game, in one more step. This guide covers editing. Turning the result into something Halo loads is mjolnir pack, which builds an override container you drop beside the shipped ones — nothing shipped is modified, and deleting three files reverts it. If that is what you are here for, start with getting_started.md, which walks the whole path end to end.

Extracted and edited tags are copyrighted game content. Keep them local. The repository ignores *.ubulk and tagdump/ for this reason, and only ever publishes schema — field names, types, offsets — never values.

What you need

• Halo Campaign Evolved installed (Steam).
• An oo2core_9_win64.dll from any local Unreal Engine install. UE 5.5+ links Oodle statically, so the game ships no separate copy.

$env:HCE_PAKS = "C:\Program Files (x86)\Steam\steamapps\common\Halo Campaign Evolved\Meteorite\Content\Paks"
$env:OODLE    = "C:\Program Files\Epic Games\UE_5.6\Engine\Binaries\DotNET\AutomationTool\oo2core_9_win64.dll"

Both tools read those two paths. The editor also auto-detects them on first run.

---

Part 1: the command line

cargo build --release -p blam-cli
# the binary lands at target/release/mjolnir

Finding your way around

Start wide, then narrow.

mjolnir groups                      # all 101 groups, with counts
mjolnir list --group weapon         # every weapon tag
mjolnir list --group weapon --limit 5

Group names are the long ones — weapon, scenario_structure_bsp, model_animation_graph — not the four-CCs.

Looking at a tag

mjolnir values --group weapon --tag SMG

That prints the tag's fields with their actual values: enums resolved to option names, bitfields to the names of the bits that are set, tag references as path (group), colours as hex.

Useful flags:

Tip. Big tags are enormous — scenario has tens of thousands of fields. Start with --depth 1 and work down, or pipe through findstr / grep:

mjolnir values --group model --depth 1 | findstr "tag reference"

Changing a field

mjolnir set --group camera_track --field "control points[3].position" --value "(1.5, 2.5, 3.5)"

  field    control points[3].position  [real vector 3d]
  before   (-3.522356, 0.00095, 1.838378)
  after    (1.5, 2.5, 3.5)
  changed  12 byte(s) at 0x345..=0x350, inside the field at 0x345..0x351
  contained within the field: true
  re-read  (1.5, 2.5, 3.5)  (walk exact: true)

  dry run; pass --out <file> to write the patched tag

It is a dry run unless you pass --out. Read the report before writing anything. The last line is the important one: the patched bytes were parsed again from scratch and the value read back out of them, so it is telling you what the file says, not what the command intended.

mjolnir set --group camera_track --field "control points[3].position" `
  --value "(1.5, 2.5, 3.5)" --out my-camera_track.ubulk

Field paths

A path is what you saw in mjolnir values, joined with dots, with [n] for block and array elements:

bounding radius                        a field on the root
unit.object.bounding radius            through inlined structs
control points[3].position             into element 3 of a block
item.object.functions[0].export name   both

The editor shows the same path when you hover a field name, so you can find one in the UI and script it on the command line.

Writing values

Give values in the same form mjolnir values shows them. The quotes and brackets are optional.

Option names are checked against that field's options. Setting secondary flags to "allows binoculars" is refused, because that option belongs to flags — which is a useful guard against editing the field next to the one you meant.

Two kinds of edit

Most fields are fixed width: the new value goes over the old bytes and the file is otherwise identical. The report tells you exactly which bytes moved.

A string id or tag reference keeps its value in a trailing section, so changing it resizes the tag. Those take a different path: the data section is serialised again with the new value in place. The report says so, and shows the new file size:

  file     21193 bytes -> 21214 bytes (the value resizes its section)
  re-read  fx\holograms\a_longer_name (coll)
  walk     1554 of 1554 bytes consumed

Setting one of these to the value it already has reproduces the file byte for byte, which is how you can tell the rebuild itself is not disturbing anything.

Which kind you are making matters beyond tidiness: a fixed-width edit keeps the payload the length the game's package header declares, and that is what lets a single-chunk override container load it. See getting_started.md.

Editing a tag that is already a file

Every command above reaches its tag through the shipped containers, which means Oodle. If you have no oo2core DLL, or you want to work on a tag you extracted earlier, tag-file takes the bytes directly — a tag's layout comes from its own header, so nothing external is needed:

mjolnir tag-file --file ar.tag                      # print every field
mjolnir tag-file --file ar.tag --depth 3 --all      # deeper, including zeroes
mjolnir tag-file --file ar.tag `
  --field "magazines[0].rounds reloaded" --value 99 `
  --out ar-patched.tag

It reports and verifies exactly as set does, and without --out it is a dry run.

Checking your work

These run over your whole installation and are how the format claims are backed up. They are also a good sanity check that your paths are right:

mjolnir validate --all      # structural invariants, all 12,290 tags
mjolnir roundtrip --all     # read every tag, write it back, compare bytes
mjolnir recode --all        # decode and re-encode every field, compare bytes

validate --all takes a few minutes and reads ~5.6 GB. roundtrip and recode are slower still. None of them writes anything.

Digging into the format

mjolnir fields --group weapon          # the field list, with offsets and sizes
mjolnir layout --group weapon --tables # type, block and struct tables
mjolnir sections                       # the tgly tables and the blay preamble
mjolnir data --group weapon --trace    # the value walk, section by section
mjolnir defs                           # export the whole schema corpus as JSON

--trace is the one to reach for when a tag will not read: it prints the walk as it happens and stops at the failure, naming the field path.

---

Part 2: the tag editor

cd apps/tag-editor
pnpm install
pnpm tauri dev

On first run it looks for your installation and the Oodle DLL. If it cannot find them, point it at the two paths above.

Getting around

• Left column: tag groups, with how many tags each holds.
• Middle column: tags in the selected group, showing the tag name with its directory beside it. The search box searches every group at once.
• Right pane: the selected tag's fields and values.

The header tells you whether the values are trustworthy:

• values exact — the walk consumed the whole data payload. What you see is complete.
• values partial — something did not add up; treat the values with suspicion.
• If a tag cannot be read at all, the pane says so and shows the field path where the walk stopped, rather than pretending.

Reading

Structs are expanded by default; blocks and arrays start collapsed when they are long. A block header shows how many elements it really has. Very large blocks show only the first 64 — the header says first 64 shown when that happens, so a partial list is never mistaken for the whole thing.

Hovering a value shows it in full, along with its field path.

Editing

Click a value, type a new one, press Enter. Escape cancels.

Edited fields are marked with a dot and highlighted, and each gets an undo next to it. A bar at the top of the pane counts the pending edits and reports what the last one did:

control points[3].position: (-3.522356, 0.00095, 1.838378) → (1.5, 2.5, 3.5) (12 bytes changed)

Values go in the same form the CLI takes — see the table above. Enums and bitfields are written by name, tag references as group:path.

An edit is applied to a copy, the result re-parsed from scratch and re-walked, and only recorded if that works. A value that does not fit is rejected and the field is left alone, with the reason shown.

Saving — mod projects

The game's containers are read-only, so edits are never written back into the installation. Instead, edits belong to a mod project: open the mod tab in the left panel, start one, and from then on every edit autosaves into the project folder as a recipe — which tags change, which fields, and what they become. Closing the editor loses nothing; the last project reopens on the next launch.

From the mod panel the project can be tested in game (baked into an override container and installed next to the shipped ones), exported as a .mjolnir archive anyone can install through the launcher, and published to the hub. See making_your_first_mod.md for that whole path.

Export patched tag… still writes a single tag with your edits to a file you choose — useful for inspection and diffing, but not something the game loads.

---

Tips

Diff two tags. mjolnir values output is plain text, so:

mjolnir values --group weapon --tag SMG --all > smg.txt
mjolnir values --group weapon --tag magnum --all > magnum.txt
fc smg.txt magnum.txt

Find which tags reference another. Tag references print as path (group), so:

mjolnir values --group model --depth 1 | findstr "hologram"

Work out a field path. Run mjolnir values with a small --depth, find the field, then build the path from the names on the way down. Or hover it in the editor.

Start with a small group. camera_track is the smallest and decodes completely — a good place to see the whole shape of a tag at once. collision_damage, camo and breakable_surface are also small.

When a tag will not read. Nine scenario tags do not, and are documented. For anything else, mjolnir data --group <g> --trace will name the field where the walk stopped, which is usually enough to see what is going on.

---

What is not supported yet

Being explicit, so you do not go hunting:

• String ids the game has never seen. Length-changing edits work in game — verified 2026-08-02 with an assault rifle rewired to fire needler shards — but a string id set to text the game's string table does not already contain makes the game reject the whole tag (the weapon simply vanishes and the player falls back to the pistol). The editor warns when a mod edits a string id. See iostore_packaging.md.

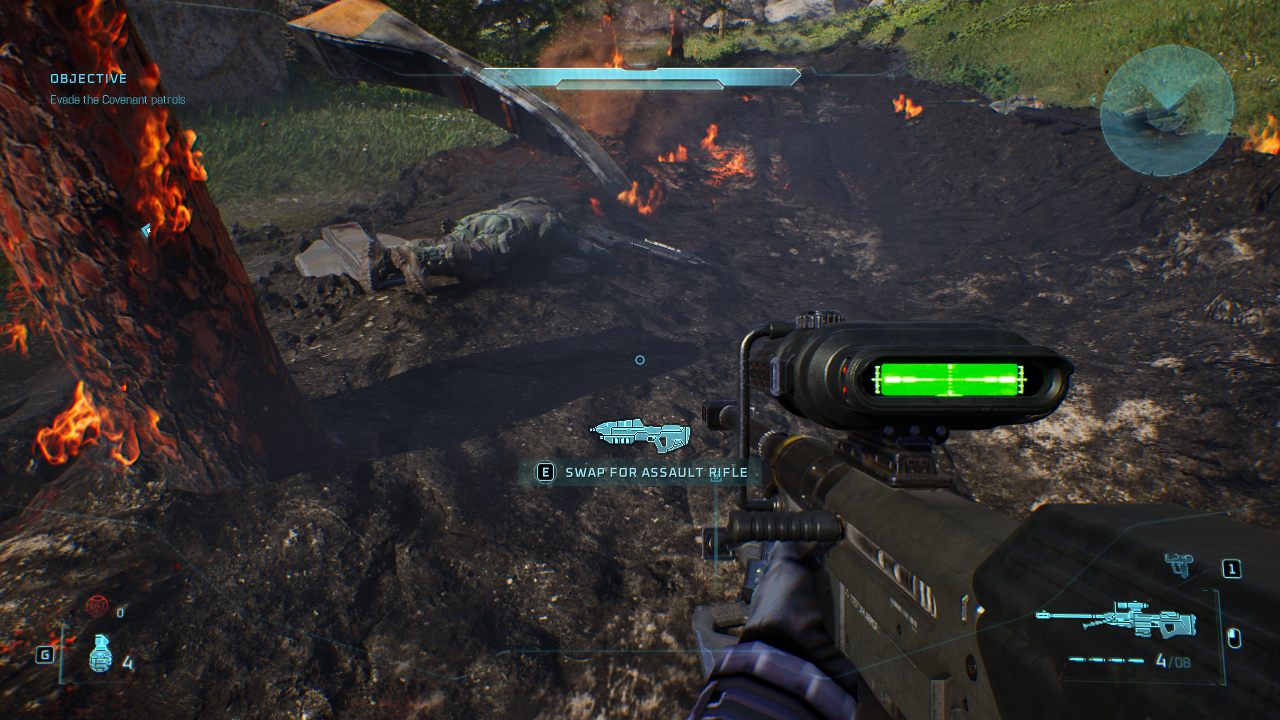

• Adding or removing block elements. You can change values, not counts.
• Editing data fields. Their inline structure is not yet interpreted.
• Nine scenario tags whose values do not read, all failing on the same field slot. See tag_body_format.md for the detail.
